EK Water Blocks 3831109849651, Bagplade, Acetal, Kobber, Polyoxymethylen (POM), Sort, 1/4", EVGA GeForce RTX 3080, 3090 FTW3, 303 mm
Varenr.: [7994985] | Producent: Ekwater | EAN: 3831109849651
Fjernlager (5-7 hverdage)
Varen er på fjernlager, leveringstiden er 5-7 hverdage. Mere info
Leveringsmuligheder - Vælges ved checkout
Instabox - Pakkeboks
Fri fragt
GLS - Pakkeshop
Fri fragt
DAO - Hjemmelevering om natten og i de tidlige morgentimer
Perfekt til arbejdsdage - Levering inden kl. 06:00 - Klar når du vågner
9,00
GLS - Levering til hoveddøren
59,00
Afhentning i vores Pick-up point i Ringsted
Fri fragt
Vis alle leveringsmuligheder (5)
DKK
3.985,00
ex. moms 3.188,00
Total inkl. fragt
3.985,00
Funktionen kræver at man er logget ind. Opret en bruger og brug vores smarte liste system til at holde styr på fremtidige indkøb, faste indkøb eller ønskelister.
Opret bruger
Login
Opret bruger
Login
Send på mail

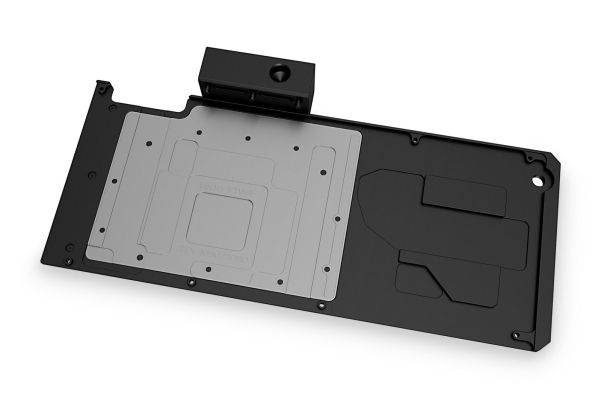

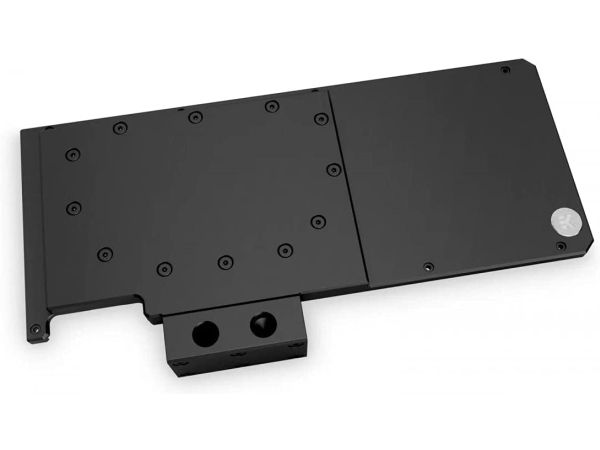

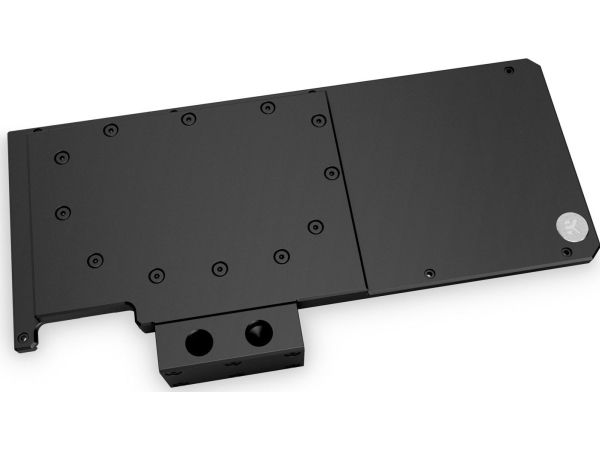

EK-Quantum Vector FTW3 RTX 3080/3090 Active Backplate - Acetal is a cutting-edge addition to the EK® Quantum Line. It is made to complement the existing EK-Quantum Vector FTW3 RTX 3080/3090 water blocks and actively cool the backside of all EVGA® GeForce RTX™ 3080 and 3090 FTW3 GPU.
EK-Quantum Vector FTW3 RTX 3080/3090 Active Backplate
The EK-Quantum Vector FTW3 RTX 3080/3090 Active Backplate comes with a new terminal that replaces the stock terminal arriving with the Vector water block and links the water block and Vector Active Backplate into a single unit. This way, the whole enclosure requires only one inlet and one outlet, removing unnecessary additional tubing and reducing clutter. It is the ultimate aesthetic and performance solution that finds your GPU sandwiched between two water blocks, allowing maximum cooling.
The Vector Active Backplate directly cools the PCB hotspots that are found on the backside of the GPU core and the VRM (voltage regulation module). On the RX 3090, the VRAM located on the backside is cooled, while the RTX 3080 gets cooling for the PCB located around the front-mounted VRAM. Cooling liquid is channeled over all these critical areas.
These newly developed active backplates feature a fin array with 8 wide channels allowing for very low flow restriction. This in turn allows overall lower temperatures, while the active backplate gets more than sufficient surface area for heat transfer.
The base of the active backplate is CNC-machined out of nickel-plated electrolytic copper, while its top is CNC-machined out of durable black POM acetal. The rest of the backplate is made of black anodized aluminum and it does not come in contact with the liquid. These Vector Active Backplates also feature acetal terminals that match the top cover. The watertight sealing is ensured by high-quality EPDM O-rings.
Enclosed:
- EK-Quantum Vector FTW3 RTX 3080/3090 Active Backplate - Acetal
- Necessary mounting screws, nuts, and washers
- 1x Nickel plated brass plug G1/4”
- EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
- Thermal pads
EK-Quantum Vector FTW3 RTX 3080/3090 Active Backplate
The EK-Quantum Vector FTW3 RTX 3080/3090 Active Backplate comes with a new terminal that replaces the stock terminal arriving with the Vector water block and links the water block and Vector Active Backplate into a single unit. This way, the whole enclosure requires only one inlet and one outlet, removing unnecessary additional tubing and reducing clutter. It is the ultimate aesthetic and performance solution that finds your GPU sandwiched between two water blocks, allowing maximum cooling.
The Vector Active Backplate directly cools the PCB hotspots that are found on the backside of the GPU core and the VRM (voltage regulation module). On the RX 3090, the VRAM located on the backside is cooled, while the RTX 3080 gets cooling for the PCB located around the front-mounted VRAM. Cooling liquid is channeled over all these critical areas.
These newly developed active backplates feature a fin array with 8 wide channels allowing for very low flow restriction. This in turn allows overall lower temperatures, while the active backplate gets more than sufficient surface area for heat transfer.
The base of the active backplate is CNC-machined out of nickel-plated electrolytic copper, while its top is CNC-machined out of durable black POM acetal. The rest of the backplate is made of black anodized aluminum and it does not come in contact with the liquid. These Vector Active Backplates also feature acetal terminals that match the top cover. The watertight sealing is ensured by high-quality EPDM O-rings.
Enclosed:
- EK-Quantum Vector FTW3 RTX 3080/3090 Active Backplate - Acetal
- Necessary mounting screws, nuts, and washers
- 1x Nickel plated brass plug G1/4”
- EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
- Thermal pads
