Fischer 512646, Rørholder, Sort, Stål, 15 - 19 mm, 9,53 mm (0.375"), EPDM, Zink stål, M8/M10

Varenr.: [4633011] | Producent: Fischer | Model-nr.: 512646 | EAN: 4048962117721
Ikke på lager
Varen er ikke på lager. Mere info

Udsolgt

Varen er ikke på lager.

Brug funktionen ”Giv mig besked..." herunder for opdateringer.

Leveringsmuligheder  - Vælges ved checkout
Instabox - Pakkeboks
Fri fragt
GLS - Pakkeshop
Fri fragt
DAO - Hjemmelevering om natten og i de tidlige morgentimer
Perfekt til arbejdsdage - Levering inden kl. 06:00 - Klar når du vågner
9,00
GLS - Levering til hoveddøren
59,00
Afhentning i vores Pick-up point i Ringsted
Fri fragt
Vis alle leveringsmuligheder (5)
DKK 1.069,00
ex. moms 855,20
Total inkl. fragt 1.069,00
Giv mig besked når varen er på lager igen
Læs yderligere specifikationer og beskrivelse

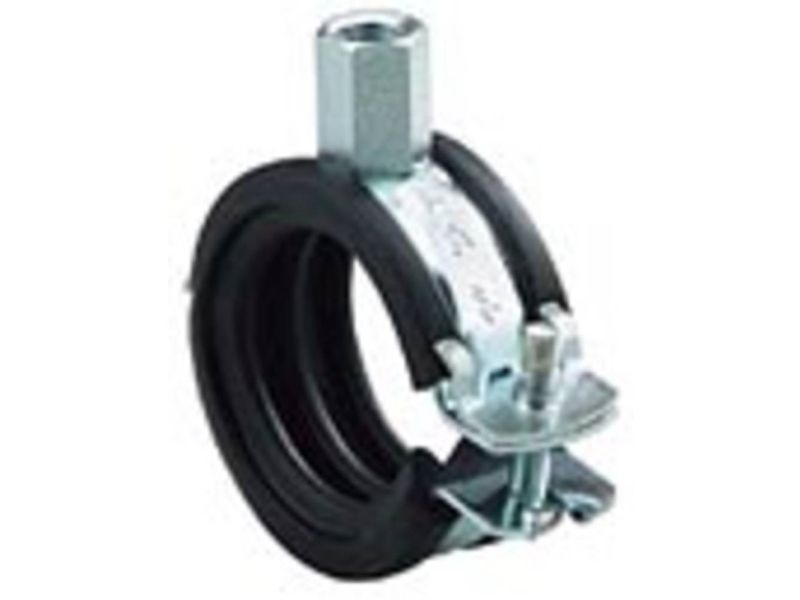

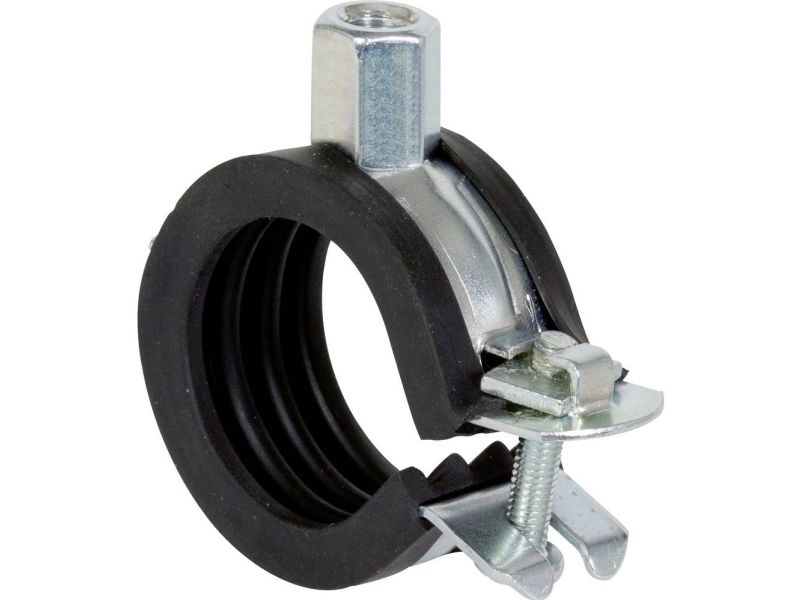

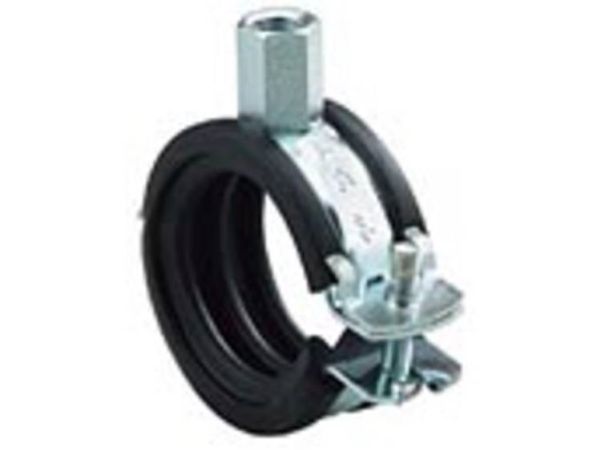

The fischer hinged pipe clamp FGRS with sound insulation insert for fixing pipelines. The pendulum screw allows for simple one-handed installation. Connecting nut with combination thread M8 / M10 for holding threaded rods or hanger bolts.

Advantages
- The floating single screw allows a simple, one-handed installation.
- The safety latch fastening guarantees secure pipe installation without the clamp springing open.
- The compact construction of the pipe clamp enables a simple post-installation insulation.
- The screw's design stops it falling out during the installation.

Properties
- Material: steel DD11 (material no. 1.0332) acc. to DIN EN 10111
- Zinc plating: electro zinc plated
- Connecting nut: resistance welded, M8, SW 13
- Locking screw: flat head screw with combination recessed head
- Material sound insulation insert: EPDM; chlorine-free; silicone-free
- Sound insulation: for DIN 4109
- Temperature range: -40 °C to +100 °C
- Hardness: 55 ± 5° Shore A
- Fire behaviour: DIN 4102: Class B2
