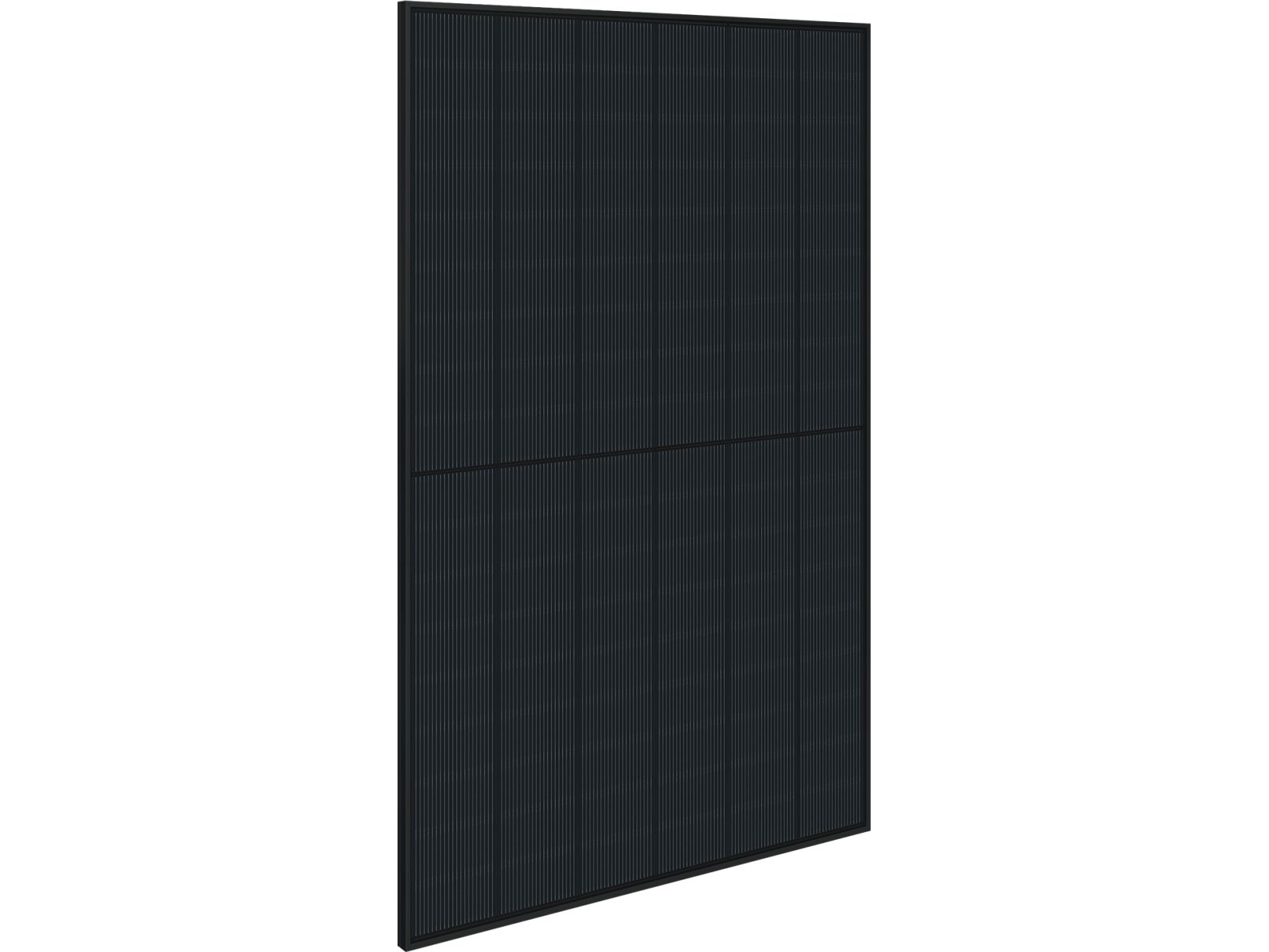

ASTRONERGY Monokrystalinsk N-Type solcellemodul 450 Watt peak med sort ramme og panel LxBxH: 1762×1134×30mm , Stik: Staubli MC4 Kabel 1200mm
Varenr.: [24765693] | Producent: astronergy | Model-nr.: CHSM48RN(DG)(BLH)/F-BH450 | EAN: 5705157572039 | UNSPSC.: 32111701 | EL-nr.: 5478003507
Fjernlager (1-2 hverdage)
Varen er på fjernlager, leveringstiden er 1-2 hverdage. Mere info
Leveringsmuligheder - Vælges ved checkout
Fragtmand til kantsten.
199,00
Afhentning i vores Pick-up point i Ringsted
Fri fragt
Fragtprisen er baseret på levering til postnr.: 4140 - Borup skift postnr.
Angiv postnr til levering:
DKK
1.073,00
ex. moms 858,40
Total inkl. fragt
1.272,00
Funktionen kræver at man er logget ind. Opret en bruger og brug vores smarte liste system til at holde styr på fremtidige indkøb, faste indkøb eller ønskelister.
Opret bruger
Login
Opret bruger
Login
Send på mail
Monokrystalinsk N-Type solcellemodul 450 Watt peak med sort ramme og panel LxBxH: 1762×1134×30mm , Stik: Staubli MC4 Kabel 1200mm
N-TYPE PV Module CHSM48RN(DG)(BLH)/F-BH Bifacial Series
KEY FEATURES
Høj effekt og pålidelighed
n-type TOPCon 4.0
ZBB Design , Zero-busbar integrated
Sleek Design , = 2 ? area
Nem at installere og transportere
Bifacial gain
All black Technology
Producent garanti på panelet:
25 Years Warranty Product Warranty
30 Years Warranty for Linear Power Output
STC rated output (Pmpp) 450 Wp
Rated voltage (Vmpp) at STC 30.51 V
Rated current (lmpp) at STC 14.75 A
Open circuit voltage (Voc) at STC 36.59 V
Short circuit current (Isc) at STC 15.61 A
Module efficiency 22.5%
Maximum system voltage (IEC) 1500VDC
Number of diodes 3
Junction box IP rating IP 68
Maximum series fuse rating 35 A
MECHANICAL SPECIFICATIONS
Outer dimensions (L x W x H) 1762 x 1134 x 30 mm
Frame technology Aluminum, black anodized
Front glass thickness 2.0 + 2.0 mm
Cable length (Customized) 1200 mm
Cable diameter : 4 mm² / 12 AWG
Connector type : Staubli MC4-EVO2A connector.
Module Weight 24.5 kg
Packing unit 36 pcs / box
Modules per 40' HQ container : 936 pcs
