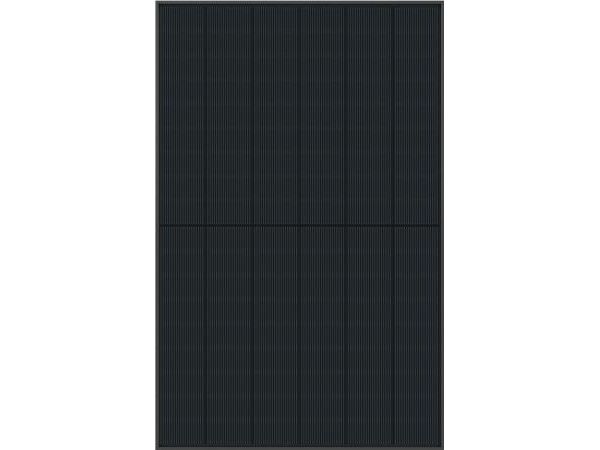

ASTRONERGY Monokrystalinsk N-Type solcellemodul 440 Watt peak med sort ramme og panel LxBxH: 1762×1134×30mm , Stik: Staubli MC4 Kabel 1200mm
Varenr.: [24466347] | Producent: astronergy | Model-nr.: CHSM54RNS(DG)(BLH)/F-BH 440WP | EAN: 5705157378631 | UNSPSC.: 32111701 | EL-nr.: 5478002865
Fjernlager (1-2 hverdage)
Varen er på fjernlager, leveringstiden er 1-2 hverdage. Mere info
Leveringsmuligheder - Vælges ved checkout
Fragtmand til kantsten.
199,00
Afhentning i vores Pick-up point i Ringsted
19,00
Fragtprisen er baseret på levering til postnr.: 4140 - Borup skift postnr.
Angiv postnr til levering:
DKK
815,00
ex. moms 652,00
Total inkl. fragt
1.014,00
Funktionen kræver at man er logget ind. Opret en bruger og brug vores smarte liste system til at holde styr på fremtidige indkøb, faste indkøb eller ønskelister.
Opret bruger
Login
Opret bruger
Login
Send på mail
Monokrystalinsk N-Type solcellemodul 440 Watt peak med sort ramme og panel LxBxH: 1762×1134×30mm , Stik: Staubli MC4 Kabel 1200mm
N-TYPE PV Module CHSM54RNs(DG)(BLH)/F-BH Bifacial Series
KEY FEATURES
Høj effekt og pålidelighed
ZBB design , elegant appearance
Suitable for distributed projects
Nem at installere og transportere
Bifacial gain
All black
Producent garanti på panelet:
25 Years Warranty Product Warranty
30 Years Warranty for Extra Linear Power Output
STC rated output (Pmpp) 440 Wp
Rated voltage (Vmpp) at STC 33.05 V
Rated current (lmpp) at STC 13.31 A
Open circuit voltage (Voc) at STC 39.00 V
Short circuit current (Isc) at STC 14.10 A
Module efficiency 22.0%
Maximum system voltage (IEC) 1500VDC
Number of diodes 3
Junction box IP rating IP 68
Maximum series fuse rating 30 A
MECHANICAL SPECIFICATIONS
Outer dimensions (L x W x H) 1762 x 1134 x 30 mm
Frame technology Aluminum, black anodized
Front glass thickness 1.6 + 1.6 mm
Cable length (Customized) 1200 mm
Cable diameter : 4 mm² / 12 AWG
Connector type : Staubli MC-4 connector.
Module Weight 21.5 kg
Packing unit 36 pcs / box
Modules per 40' HQ container : 936 pcs
N-TYPE PV Module CHSM54RNs(DG)(BLH)/F-BH Bifacial Series
KEY FEATURES
Høj effekt og pålidelighed
ZBB design , elegant appearance
Suitable for distributed projects
Nem at installere og transportere
Bifacial gain
All black
Producent garanti på panelet:
25 Years Warranty Product Warranty
30 Years Warranty for Extra Linear Power Output
STC rated output (Pmpp) 440 Wp
Rated voltage (Vmpp) at STC 33.05 V
Rated current (lmpp) at STC 13.31 A
Open circuit voltage (Voc) at STC 39.00 V
Short circuit current (Isc) at STC 14.10 A
Module efficiency 22.0%
Maximum system voltage (IEC) 1500VDC
Number of diodes 3
Junction box IP rating IP 68
Maximum series fuse rating 30 A
MECHANICAL SPECIFICATIONS
Outer dimensions (L x W x H) 1762 x 1134 x 30 mm
Frame technology Aluminum, black anodized
Front glass thickness 1.6 + 1.6 mm
Cable length (Customized) 1200 mm
Cable diameter : 4 mm² / 12 AWG
Connector type : Staubli MC-4 connector.
Module Weight 21.5 kg
Packing unit 36 pcs / box
Modules per 40' HQ container : 936 pcs
