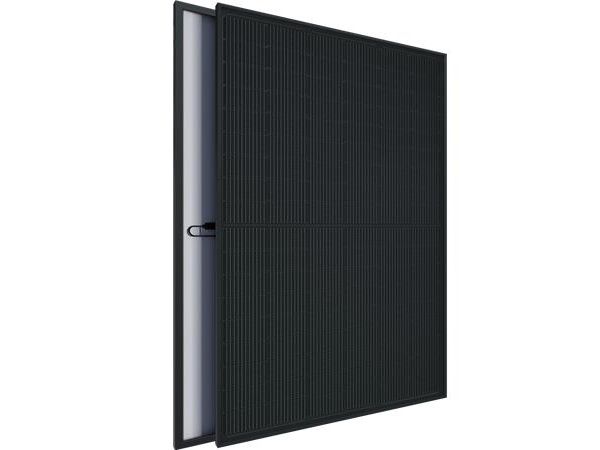

ASTRONERGY Monokrystalinsk P-Type solcellemodul 395 Watt peak med sort ramme og panel LxBxH: 1722×1134×30mm HCB40 connector, Kabel 1200mm
Varenr.: [21029617] | Producent: astronergy | Model-nr.: CHSM54M(BL)-HC-395Wp | EAN: 5705157353539 | UNSPSC.: 32111701 | EL-nr.: 5478002553
Fjernlager (1-2 hverdage)
Varen er på fjernlager, leveringstiden er 1-2 hverdage. Mere info
Leveringsmuligheder - Vælges ved checkout
Fragtmand til kantsten.
199,00
Afhentning i vores Pick-up point i Ringsted
19,00
Fragtprisen er baseret på levering til postnr.: 4140 - Borup skift postnr.
Angiv postnr til levering:
DKK
718,00
ex. moms 574,40
Total inkl. fragt
917,00
Funktionen kræver at man er logget ind. Opret en bruger og brug vores smarte liste system til at holde styr på fremtidige indkøb, faste indkøb eller ønskelister.
Opret bruger
Login
Opret bruger
Login
Send på mail
Monokrystalinsk solcellemodul 395 Watt peak med sort ramme og panel LxBxH: 1722×1134×30mm HCB40 connector, Kabel 1200mm
Monocrystalline PV Module CHSM54M(BL)-HC Series (182)
KEY FEATURES
PERC+ / Multi-busbar / Half-cut
Non-destructive cutting
PID resistance
All black
Producent garanti på panelet:
15 Years Warranty for Materials and Processing
25 Years Warranty for Extra Linear Power Output
STC rated output (Pmpp) 395 Wp
Rated voltage (Vmpp) at STC 30.92 V
Rated current (lmpp) at STC 12.77 A
Open circuit voltage (Voc) at STC 36.80 V
Short circuit current (Isc) at STC 13.52 A
Module efficiency 20.2%
Maximum system voltage (IEC/UL) 1000VDC
Number of diodes 3
Junction box IP rating IP 68
Maximum series fuse rating 25 A
MECHANICAL SPECIFICATIONS
Outer dimensions (L x W x H) 1722 x 1134 x 30 mm
Frame technology Aluminum, black anodized
Front glass thickness 3.2 mm
(Anti-reflective coating, tempered glass)
Cable length (IEC/UL) 1200 mm
Cable diameter (IEC/UL) 4 mm² / 12 AWG
Connector type (IEC/UL) HCB40 (Standard) connector.
Module Weight 21.3 kg
Kabel længde 1200 mm
Packing unit 36 pcs / box
Modules per 40' HQ container 936 pcs
