Schneider Electric TeSys LR2K0308 termorelæ 1,8 - 2,6 A

Schneider Electric Mini Thermal Overload Relays - LR2-K Range
Schneider Electrics K thermal overload relays are adjustable from 0.11 to 11.5 A, they have been predominantly designed for use in applications that require motor protection.
This range of mini thermal overload relays feature compensated and phase failure sensitivity, the range also offers manual and automatic reset. Each overload relay has 3-poles and screw clamp terminals.
Features & Benefits
- Commonly referred to by the range short name - LR2K
- Easy maintenance checks, check the tightening of cables through conducting thermographic testing and checking the mechanical operation of the product through manually operating the test, reset and stop buttons
- Direct mounting under a contactor is achievable
- Standards - IEC 947, BS4941, VDE 0660, NFC63-650
- Standards - CSA, UL, DEMKO, NEMKO, SEMKO, FIMKO, PTB
Applications of a Contactor and Control Overload Relay
- The majority of the time is to protect a motor
- To detect both overload conditions and fault conditions to then announce trip command for a protective device
- To deactivate a device whenever it pulls high current
- Sometimes developed into microprocessor systems and solid-state electronics

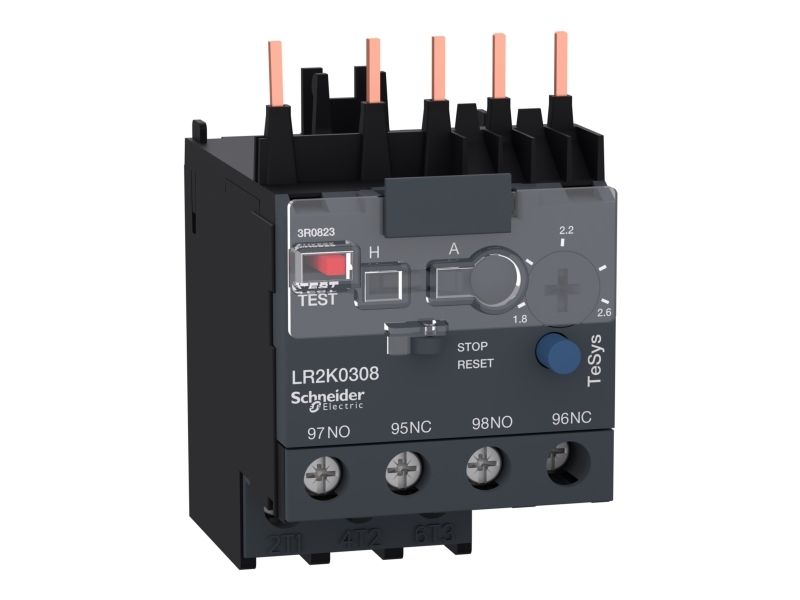

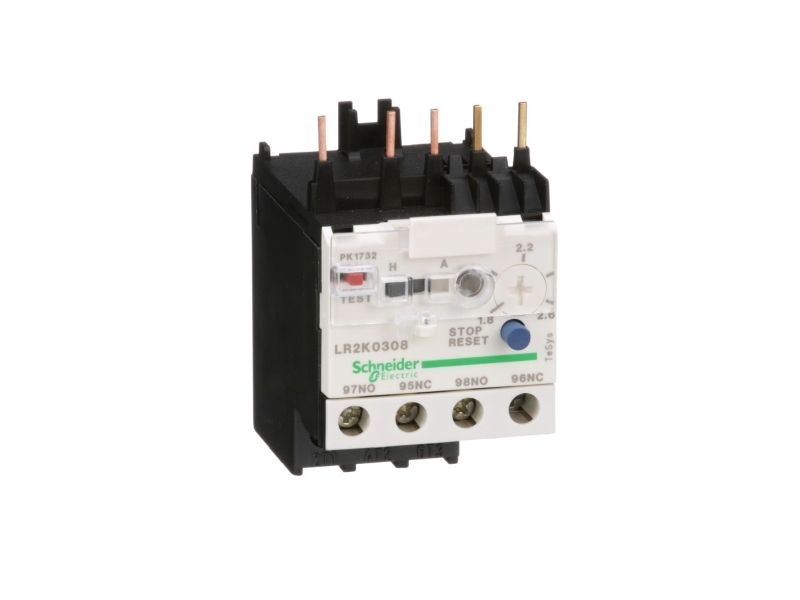

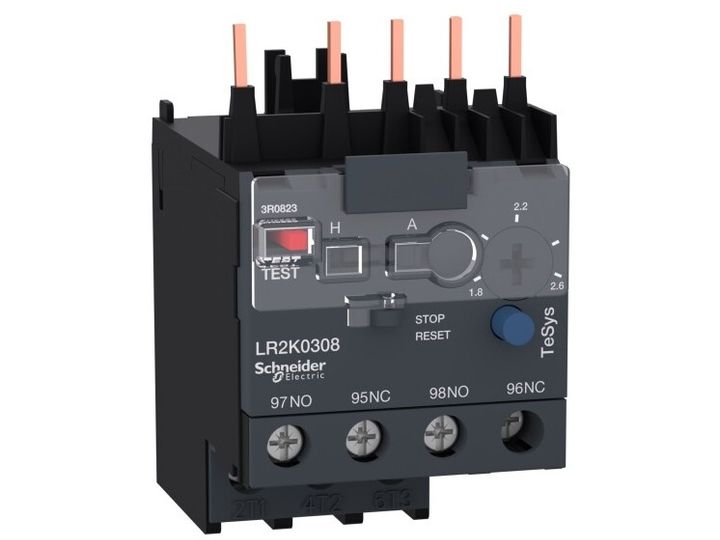

Schneider Electric LR2K Series Thermal Overload Relay, 1.8 to 2.6 A FLC Motor Rating, 100W - LR2K0308
This thermal overload relay is essential for ensuring efficient motor protection. Designed for use in various industrial applications, it has a compact profile of 45mm width, 65mm depth, and 116mm length. The product accommodates a current rating of 1.8 to 2.6A and operates effectively within a temperature range of -20?°C to +55?°C, making it a robust choice for diverse environments.
Features & Benefits
- Provides automatic and manual reset options for convenience
- Designed with 1 NO + 1 NC configuration for versatile applications
- Utilises screw clamp terminals for reliable connections
- Supports a high contact current rating of 2.6A for enhanced performance
- Offers compatibility with multiple motor types for flexible usage
Applications
- Used for motor protection against overload conditions
- Suitable for applications involving both AC and DC networks
- Ideal for integration with LP4K, LC1K, and LC7K components
- Employed where temperature stability is critical
Is it suitable for signalling circuits?
Yes, it supports various signalling circuit voltages.
Will it provide phase failure sensitivity?
Yes, phase failure sensitivity is included for added safety.
Can it connect multiple cable types?
Yes, it accommodates multiple solid and flexible cables.
Does it meet environmental standards?
Yes, it complies with several international safety standards.
